4.5” Subaru Lift kit. Maximize clearance and off road capability on your 2003-2008 Subaru Forester. This kit consists of a 2.5” strut spacer, 2” Strut spacers and 2” full Subframe spacers kit correct for CV joints angles. Better CV joint Geometry will increase life span. Spacer Kit includes spacers for Engine Crossmember, Transmission, Carrier bearing, Differential hanger and rear Differential. Install time 10-12 hours min.
*LEAD TIME: NO LEAD TIME. DONT ASK. These kits are built in batches.
Manufacturing

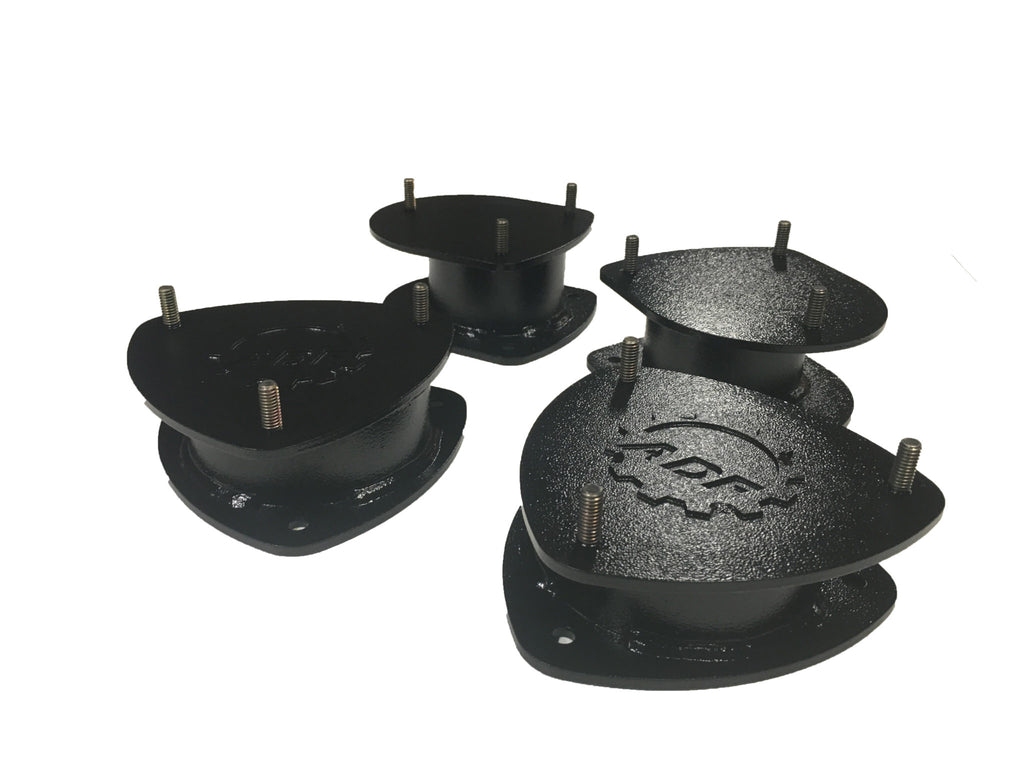

For extreme strength and reliability, we Laser cut and form 1/4" Steel with added gussets. All holes are Laser cut for accurate fitment. 2.5” Lower lift bracket, ¼” Steel laser cut for precision. Lower lift brackets are manufactured for a high tire clearance. These allow 2.5 inches more of spring perch for a larger tire. This will give you a finished lift product of 2.5 inches.
Factory Alignment
To maintain good cv joint angles when exceeding 2.5" of lift subframe spacers will be needed to keep the cv joints within their limitations. Goal is to keep cv joints within 2-2.5" over factory angle.To maintain factory alignment specifications Camber and improved Caster offsets are built into the steel spacers. - We recommend that you get an alignment after your install, as there may still be a human error factor when installing the camber bolts.
Trailing Arm Spacers
3” Trailing arm spacers are included in this kit.
Rear height additions
We also offer a few different heights of Rear spacers to compensate for added load in the vehicle or level vehicles out, if they currently aren’t sitting level. Added height is built in one solid spacer, no stacking of different spacers. Adding 3/8” compensates for mild loads, ½” for extreme loads. If you are hauling excessive loads we would recommend standard height king springs.
Powder Coating
These sets do not come powder coated. Raw steel will require painting or coating..
Hardware
All Metric Grade 10.9 Zinc Hardware is included in the kits!
- Steering shaft extension included in the kit
- Longer pitch mount induced in the kit
- Radiator hose extension included
Requirements
Upper radiator hose needs modification, cut and sleeve with the provided extension.. Steering shaft must be drilled and installed with the new spacer. Shift linkage modification required for manual transmission, not included. Air box may need modification. Other requirements may be necessary for proper function that are not listed.
Disclaimer
These kits are designed for Original Equipment Manufacture fitment. We cannot guarantee fitment on non OEM parts; strut mounts, struts, exhaust etc. Recommend contacting us for fitment verification. Please note that a majority of our kits are build to order. Lead times for this kit are not posted as they take longer than all of our other kits. It can be 6 or MORE weeks to manufacture these. Refrain from asking for updates so we can focus on building kits.
