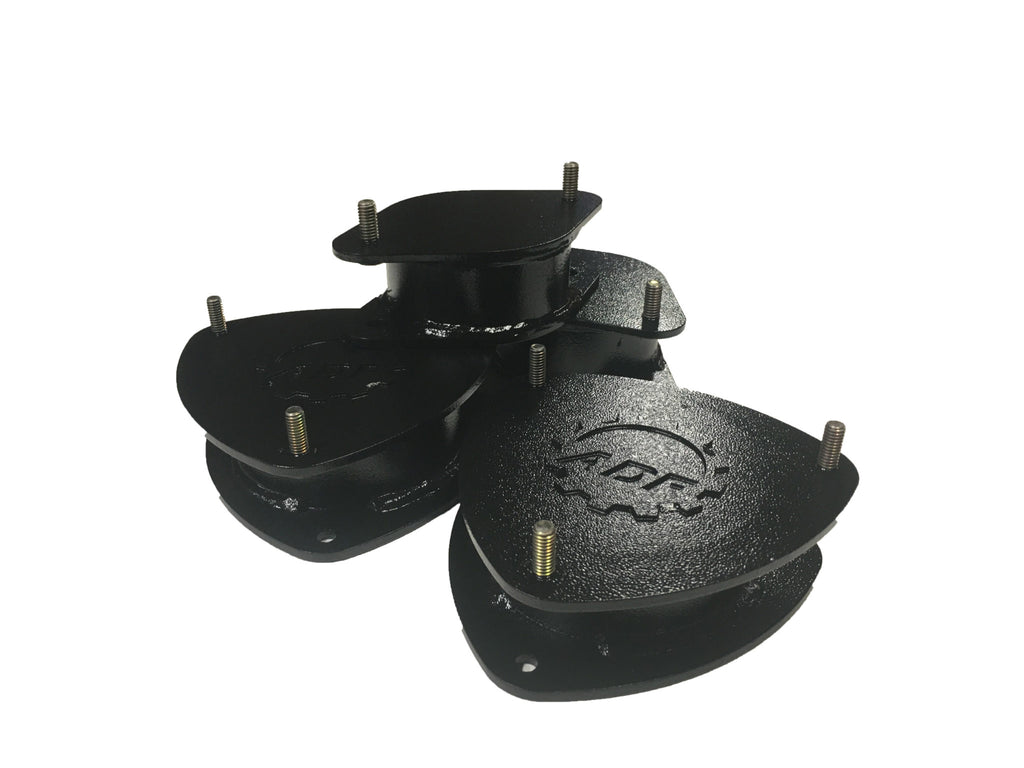

4” Subaru Lift kit. Maximize clearance and off road capability on your 2000-2004 Subaru Outback. This kit consists of a 4” strut spacer and full Subframe spacers kit correct for CV joints angles. Better CV joint Geometry will increase life span. Spacer Kit includes spacers for Engine Crossmember, Transmission, Carrier bearing, Differential hanger and rear Differential. Install time 10-12 hours min.
*LEAD TIME:NO LEAD TIME. DONT ASK. These kits are built in batches.
For extreme strength and reliability, we Laser cut and form 1/4" Steel with added gussets. All holes are Laser cut for accurate fitment.
To maintain good cv joint angles when exceeding 2.5" of lift subframe spacers will be needed to keep the cv joints within their limitations. Goal is to keep cv joints within 2-2.5" over factory angle. To maintain factory alignment specifications Camber and improved Caster offsets are built into the steel spacers. - We recommend that you get an alignment after your install, as there may still be a human error factor when installing the camber bolts.
Trailing Arm Spacers
Trailing arm spacers are included in this kit.
Rear height additions
We also offer a few different heights of Rear spacers to compensate for added load in the vehicle or level vehicles out, if they currently aren’t sitting level. Added height is built in one solid spacer, no stacking of different spacers. Adding 3/8” compensates for mild loads. If you are hauling excessive loads we would recommend standard height king springs.
These sets do not come powder coated. Raw steel will require painting or coating..
All Metric Grade 10.9 Zinc Hardware is included in the kits!
- Steering shaft extension included in the kit
- Longer pitch mount induced in the kit
Steering shaft must be drilled and installed with the new spacer. Shift linkage modification required for manual transmission, not included. Air box may need modification. Other requirements may be necessary for proper function that are not listed.
