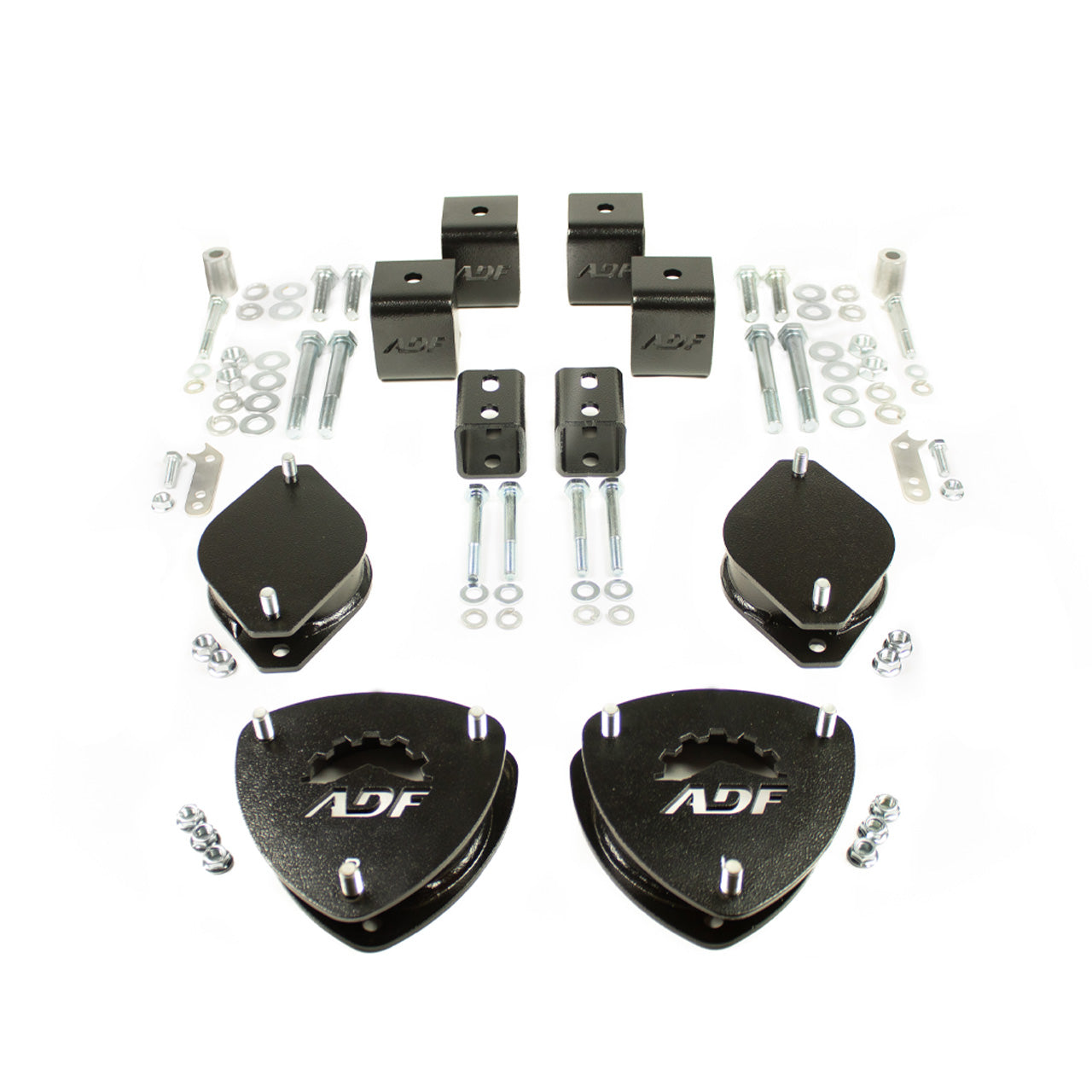

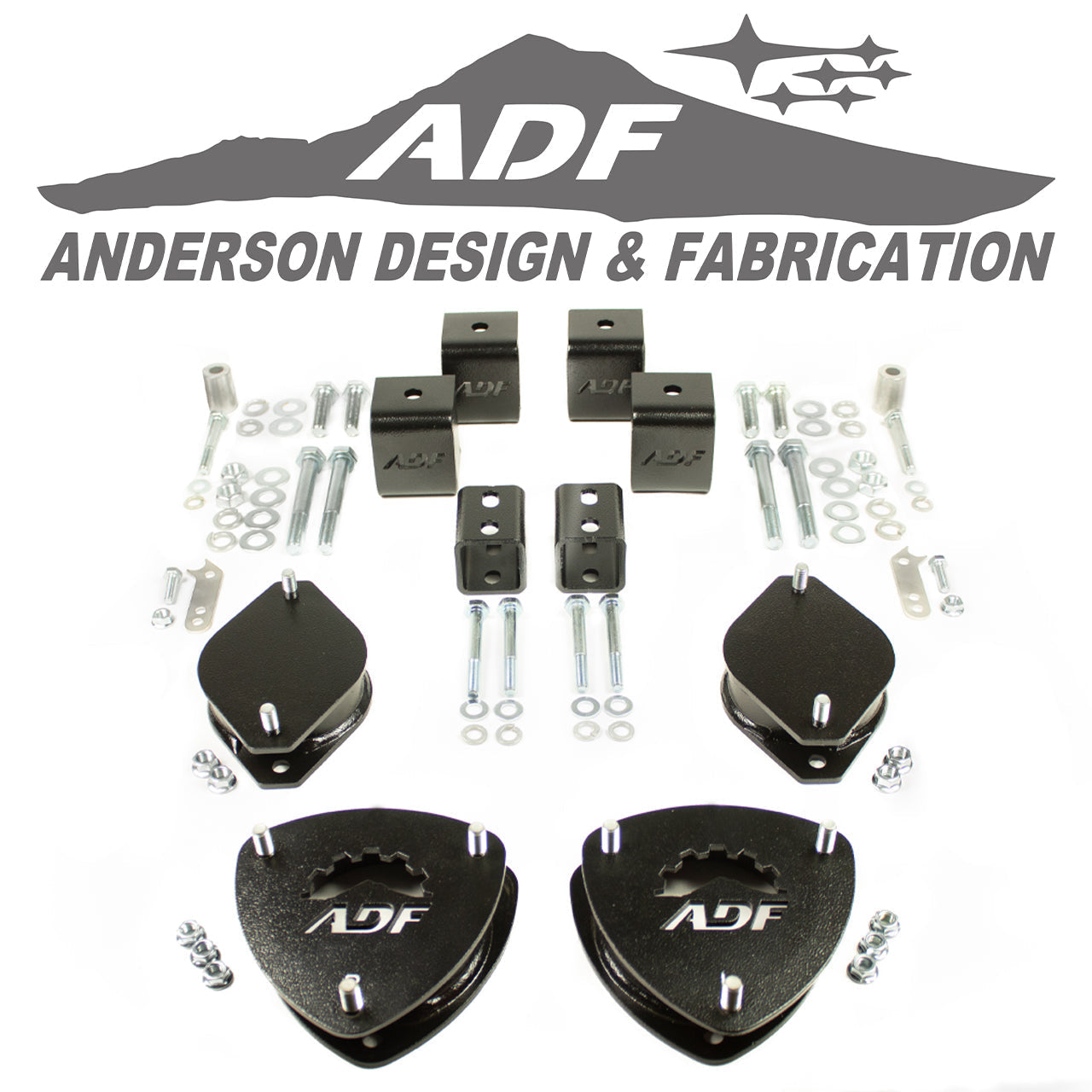

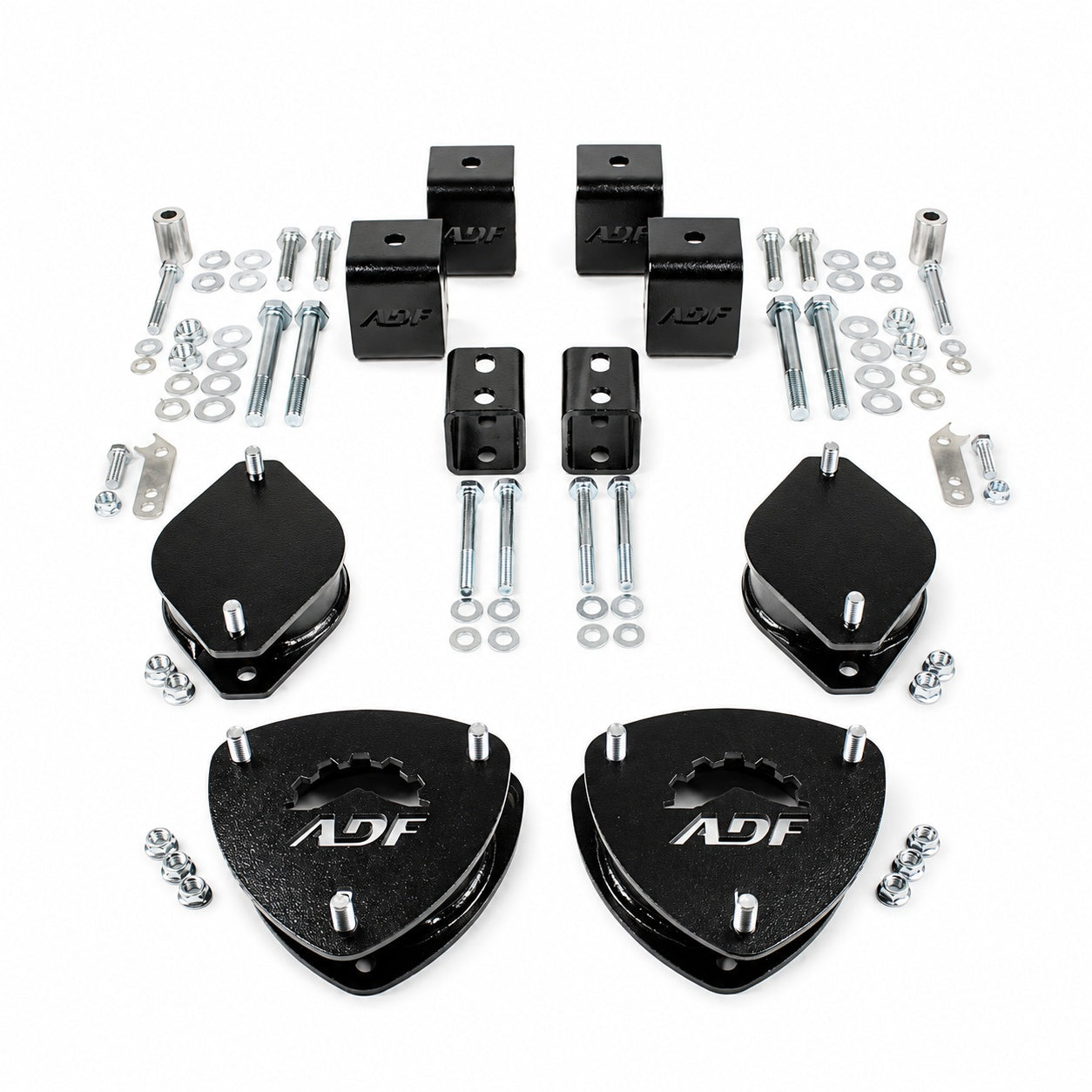

2022-2025 Subaru Outback Wilderness 2" Lift Kit with Multi Link Spacers

Experience your off-road capabilities while giving your Subaru Outback Wilderness a bold, aggressive appearance with ADF Lift Kits. Designed and manufactured in-house in the USA, our kits are backed by a lifetime warranty. Please note that installing this kit carries inherent risks, including potential CV joint wear and reduced lifespan. We recommend using CKE Anti-Wobble Inserts for added stability.

Manufacturing:

• Crafted for extreme strength and reliability using 3/16” steel plates with ¼” solid center steel tube.
• Front spacers feature six 4” MIG welds, while rear spacers boast four 5” MIG welds.
• Multi-link spacers, made of 1/4" steel, are formed and TIG welded to create a sturdy 5-sided box. The two-piece bolt design ensures secure mounting, with the upper portion attached to the chassis and the lower portion to the subframe.

Factory Alignment:

• Maintains factory alignment specifications with built-in camber and improved caster offsets.
• Alignment after installation is recommended to account for potential human error during camber bolt installation.

Multi-Link Spacers:

• We highly recommend installing multi-link spacers to keep your tires centered in their factory location and prevent rubbing when fitting larger tires.

Relocation:

• Brake line brackets included in the kit alleviate tension in the brake line post-installation.
• Sway Bar Relocation Brackets are also provided to reduce tension and binding in the rear sway bar.

Rear Height Additions:

• Various rear spacer heights are available to accommodate added load or level out vehicles not sitting evenly. Adding 3/8” compensates for mild loads/weight (75 lbs.), + ½” more for excessive loads/weight (90 lbs.).
