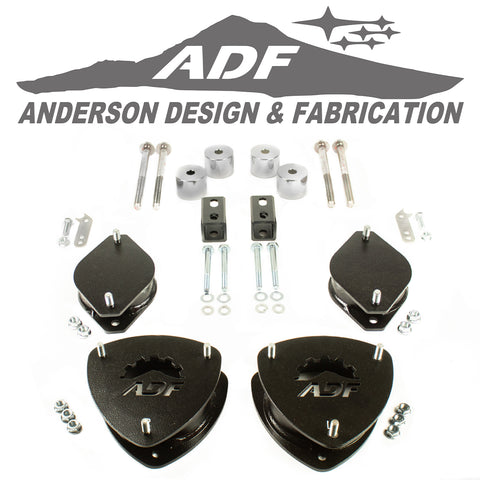

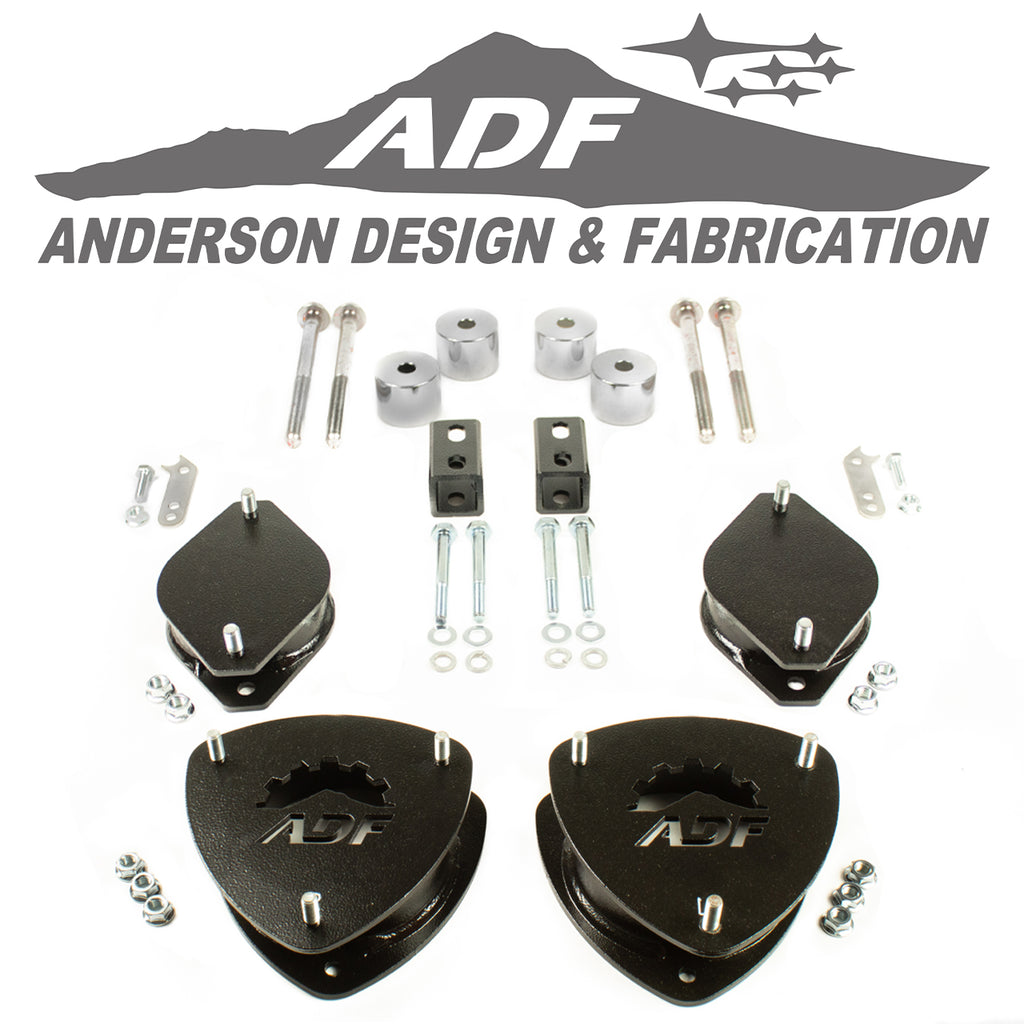

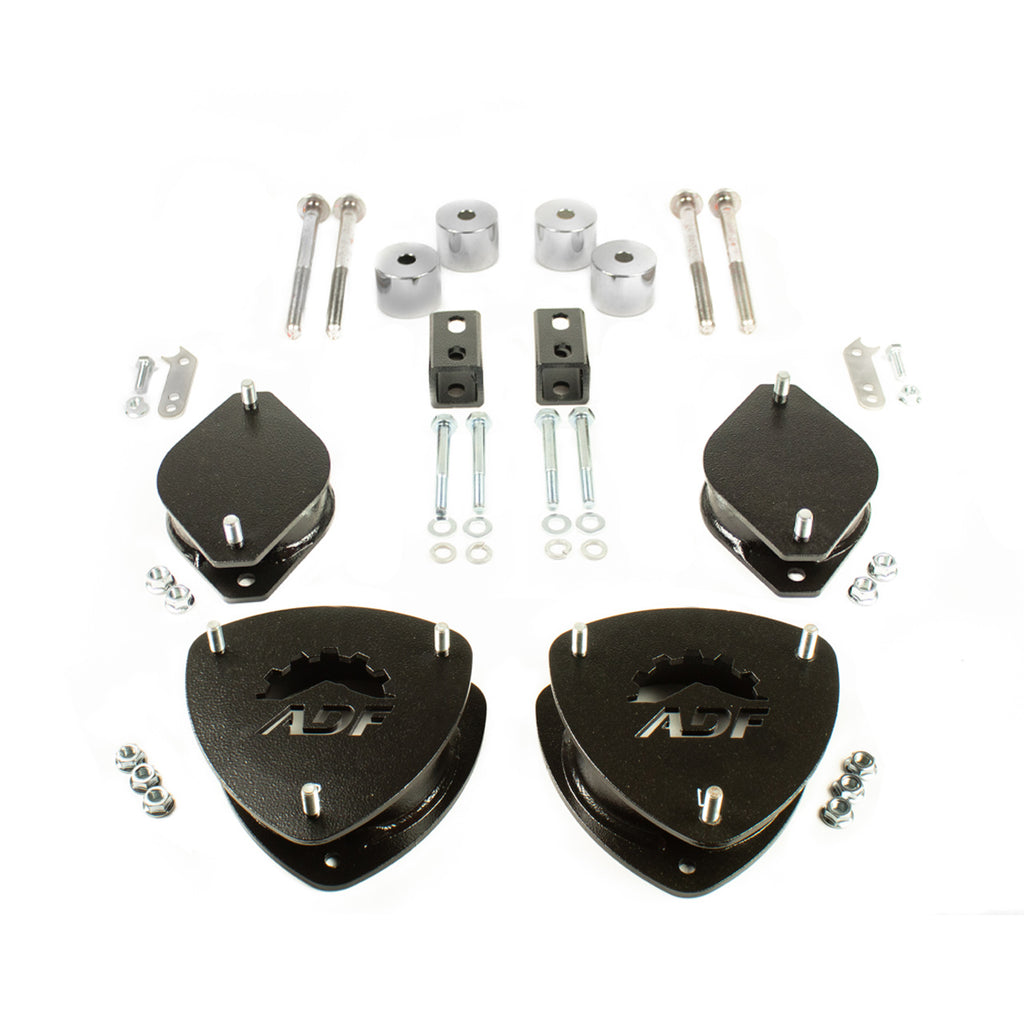

2022-2023 Subaru WRX & STI 1.5" Strut Spacers W/ Multi Link Spacers

Embark on a new level of adventure and enhance the off-road capabilities of your 2022-2023 Subaru WRX & STI with ADF Lift Kits. Designed and manufactured in-house in the USA, we are committed to quality and offer a lifetime warranty on all our products.

Manufacturing:
To ensure unparalleled strength and reliability, we utilize 3/16” steel plates with ¼” solid center steel tube. Our front spacers undergo MIG welding with six 4” welds, while rear spacers are welded four times with 5” welds. Additionally, our multi-link spacers are crafted from 1/4" steel, formed and TIG welded into a 5-sided box. The mounting employs a 2-piece bolt design for added durability, with the upper portion attached to the chassis and the lower portion to the subframe.

Factory Alignment:
Maintaining factory alignment specifications is crucial, which is why our steel spacers include Camber and improved Caster offsets. We advise getting an alignment after installation to account for any potential human error during the installation of camber bolts.

Multi-Link Spacers:
We highly recommend installing multi-link spacers to keep your tires centered in their factory location and prevent rubbing when larger tires are installed.

Relocation:
Our kit includes brake line brackets to alleviate tension in the brake line after installation.

Rear Height Additions:
We offer various heights of rear spacers to address added load in the vehicle or to level out vehicles that aren’t sitting evenly. Each spacer is constructed as a single solid piece, eliminating the need for stacking. Adding 3/8” compensates for mild loads/weight (75 lbs.), + ½” more for excessive loads/weight (90 lbs.).
